Data parameter

Characteristic

High Spheroidization

High Thermal Conductivity

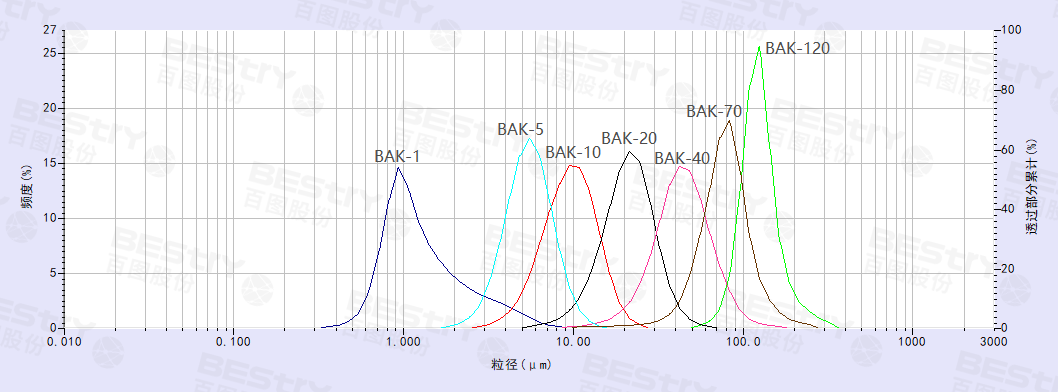

Narrow Particle Size Distribution

Complete Specifications

Application

Thermal Interface Materials

Alumina Ceramic Filter

Thermal Spray Coating

Thermal Engineering Plastics

Product Specifications

Product	Particle Size			Specific Surface Area	E.C.	PH	Moisture	True Density	Spheroidization Rate	Al₂O₃	SiO₂	Fe₂O₃	Na₂O
	D10	D50	D90	㎡/g	μS/cm	-	%	g/cm³	%	%	ppm	ppm	ppm
BAK-1	0.58	1.03	2.14	1.69	6.07	7.53	0.05	3.71	96	99.93	445	152	103
BAK-2	0.69	2.18	5.24	1.27	5.40	7.79	0.03	3.71	98	99.94	373	120	107
BAK-5	2.54	5.52	9.09	0.36	5.65	7.7	0.03	3.74	98	99.93	424	176	100
BAK-10	4.18	10.03	18.46	0.17	4.05	7.41	0.03	3.76	98	99.94	358	136	106
BAK-15	7.03	15.11	24.06	0.14	1.83	7.37	0.03	3.86	96	99.93	430	158	112
BAK-20	10.5	20.8	37.24	0.11	6.87	7.62	0.03	3.79	96	99.94	352	144	104
BAK-30	16.88	30.52	48.87	0.1	7.95	7.39	0.03	3.75	98	99.94	333	161	106
BAK-40	23.77	41.54	66.44	0.07	4.65	7.31	0.03	3.81	96	99.94	349	148	103
BAK-70	44.32	71.54	106.5	0.05	6.18	7.42	0.05	3.87	96	99.94	342	158	100
BAK-90	55.23	87.96	134.92	0.06	8.15	7.3	0.03	3.88	95	99.94	330	164	106
BAK-120	90.95	122.39	172.72	0.06	2.6	7.44	0.03	3.81	96	99.94	359	133	108
BAK-40RP	22.02	41.38	67.86	0.06	12.78	7.89	0.03	3.82	95	99.97	225	35	30

*The characteristic values recorded in the table are typical numbers not the highest specification unless specified.

Please contact Bestry sales for specifications when you encounter any question.
